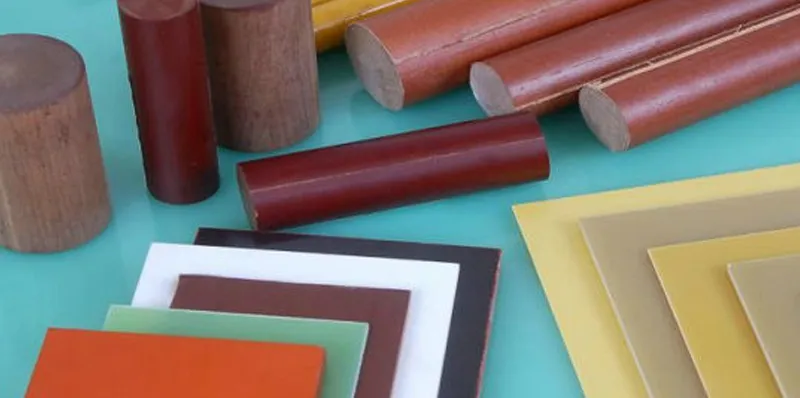

BAKELITE sheet is also known as Hylam sheet, Tufnol sheet, Norplex Sheet, Micarta Sheet,Synthetic Resin Bonded Paper Base Sheet (SRBP) Phenolic Sheet, Fabric Sheet, Laminated Sheet, Synthetic Resin Bonded Fabric base Sheet (SRBF).
BAKELITE sheet are hard, dense material made by applying heat and pressure to layers of Cellulose Paper or Fabric cloth impregnated with synthetic resin (Phenolic Resin). When heat and pressure are applied Polymerization transforms the layers into Thermosetting Industrial Laminates.
BAKELITE sheet is produced in different grades with various additives to meet diverse Mechanical,Electrical and Thermal Requirements. Some of the Grades manufactured with comparative are Given below.
| PAPER BASE | ||||
|---|---|---|---|---|
| IS: 2036-1995 | BS:2572 | DIN 7735 | EN 60893-3-4 | NEMA |
| P1 | P1 | HP 2061 | PF CP201 | X |
| P2 | P2/1 | HP 2061.5 | PF CP203 | XX |
| P3 | P3/1 | HP 2061.6 | PF CP206 | XXX |
| P4 | P4 | HP 2062-8 | PF CP204 | XXXP |
| FABRIC |
||||
|---|---|---|---|---|
| IS: 2036-1995 | BS:2572 | DIN 7735 | EN 60893-3-4 | NEMA |
| F3 | F3 | HGW 2082 | PF CC201 | C |
| F2 | F2 | HGW 2083 | PF CC202 | CE |
| F1 | F1 | HGW 2083.5 | PF CC203 | - |
| F4 | F4 | HGW 2082.5 | PF CC204 | - |
USAGE
Bakelite Sheet are used for various application Electrical as well as mechanical, such as Electric Plug, Switches, Switchgear, Tube Light Holder, Lamp cap, Chokes, Support for Electrical Components, Shrouding , Transformers, Battery Chargers Control Panels, Bobbins, Condensor Mountings, Tap Changer, Grid cover Aramture wedges, Generator Slot wedges, Machineries, Mould.
BAKELITE / HYLAM sheet are fabricated as per design or samples. For Punched Components Die has o be made. We have our own fabrication unit having facility for Cutting, drilling, shaping of material. We have following machine: Lathe, Bandsaw, Milling, drilling, Tool Grinder, Motorized Shearing Machine, Oven, CNC Router, Power press, Circular Saw.
